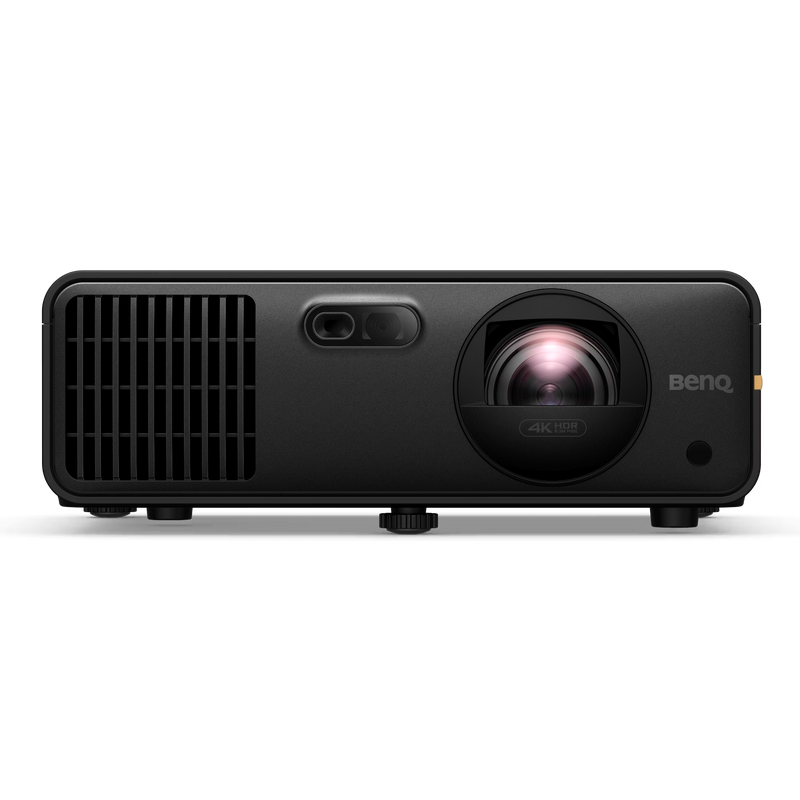

BenQ AK700ST 4000 Lumen 4K Short Throw Laser Golf Projector AK700ST-001

Description

Unmatched Immersion for Golf, Sports, Movies, and Games

One Room. One Projector. Every Experience

Designed for golf simulation, the BenQ AK700ST delivers cinematic 4K detail and calibrated Rec. 709 color accuracy for an exceptionally realistic on screen experience no matter what is on the screen. With Auto Screen Fit simplifying setup and aspect ratio adjustments, the BenQ AK700ST ensures a flawless, immersive experience for any golf course, cinematic moment, or gaming adventure.

Features

• Optimized Setting For Movies, Sports, And Gaming: HDR/ Cinama Picture mode with Audio Return. Live sports look better with HLG support. Stays responsive with Game Mode and Low Input Lag.
• Projector Setup Made Simple, The Projector That Practically Installs Itself: BenQ’s AK700ST’s advance technology eliminates the common headaches of installing a golf‑sim projector. Three steps to transform any space into an immersive entertainment area.
• Auto Screen Fit: Automatically detects and adjusts to your impact screen’s aspect ratio (16:9, 16:10, 4:3, and 1:1), perfectly filling the entire screen while maintaining optimal resolution.
• Quick Focus: Press the Quick Focus button on the remote control and make slight manual adjustments to deliver clear images.
• Short Throw Lens Designed For Golf Sim: Swing safely without fear of damage or shadows.

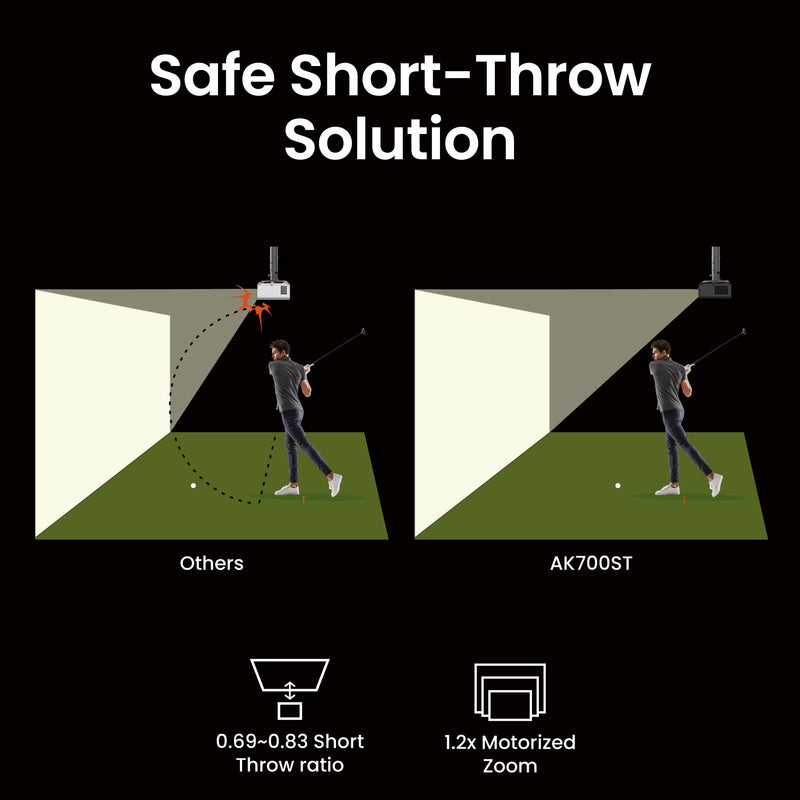

• Shadow Free Location For Every Swing: The AK700ST’s short-throw ratio lens and low offset let you place the projector safely behind the golfer for a clear, shadow-free hitting zone, keeping it out of the swing path and away from pop-up shots.
• Designed For Large Size Impact Screens: Thanks to its professional-grade motorized lens and flexible 1.2x optical zoom, the AK700ST renders stunning detail and sharpness even on 10-foot-high impact screens.
• Bring The Course Home: The AK700ST’s laser engine and BenQ calibrated Rec.709 color accuracy delivers lifelike turf tones, natural skies, and true to course realism for both playing and watching golf.
• True 4K Visual Precision: With true 4K UHD resolution and 8.3 million pixels, the AK700ST captures the subtle textures of fairways and bunkers with lifelike definition on any golf sim software platform and movies.
• Full Immersion With Curved Screen Via Warping Features: Take your golf sim to the next level with a curved screen setup. AK700ST supports image warping for curved screens, with four selectable matrix options (5x3 / 10x5 / 15x9 / 24x15). This feature is ideal for an immersive golf simulation experience.
• Vivid Images For Large Simulator Screens: The AK700ST pairs 4,000 ANSI lumens with deep contrast to produce powerful, detailed images from any source on expansive golf sim impact screens. Lights On: Clear contrast and vibrant colors even in a well-lit living room. Lights Off: Sharp contrast and vivid colors in low-light settings.
• True-To-Life Golf Course Colors: BenQ's exclusive Golf Mode is tailored to reproduce the natural organic colors found on a golf course to ensure an immersive experience from the most iconic courses in the world.
• Golf First, Fun Everywhere: Built for golf simulation first, then tuned for everything after. Switch to Cinema Mode with Audio Return, enjoy HLG for live sports, and stay responsive in Game Mode with low input lag.

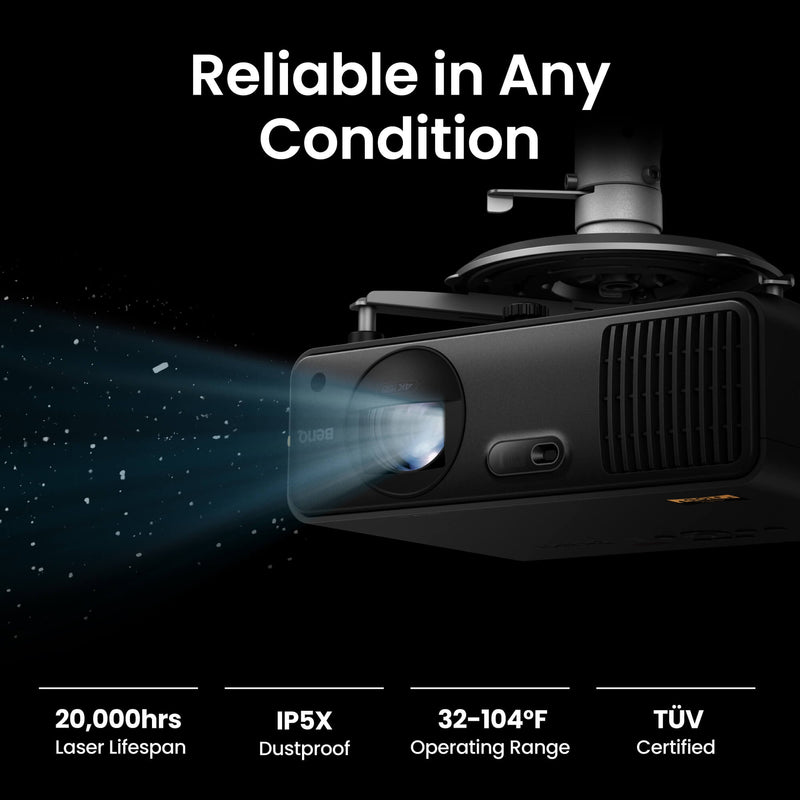

• Tough Enough For Any Garage: AK700ST's IP5X dustproof sealed engine operates reliably in temperatures from 32-104°F, eliminating the need for regular filter replacements.
• Durable Laser Technology: The AK700ST Laser projector guarantees up to 20,000 hours of light source life, reducing costs associated with lamp replacements and maintenance.
• Ready For Wireless Projection: With an optional dongle, AK700ST's Wi-Fi capability facilitates wireless projection from any devices, eliminating the need for cables.

Specifications

Display

• Brightness(ANSI lumens): 4000
• Resolution: 4K UHD (3840×2160)
• Native Aspect Ratio: 16:9
• Contrast Ratio (FOFO): 3,000,000:1
• Display Color: 30-bit (1.07 billion colors)
• Light Source: Laser
• Light Source Life: 20000 hrs
• Screen Fill: 16:9,16:10,4:3,1:1
• Quick Focus: Yes

Optical

• Throw Ratio: 0.69-0.83
• Zoom Ratio: 1.2x
• Lens: F/2.53(Wide), f = 10.2mm(Wide)
• Projection Offset (Full-Height): 102.5%
• Keystone Adjustment: 3D, Vertical ± 30 degrees; Horizontal ± 30 degrees; Rotation ± 30 degrees


• Rec. 709 Coverage: 95%
• Picture Modes: 3D, Bright, Cinema, Game, Golf, HDR10, HLG, sRGB, User 1, User 2

Compatibility

• Input Lag: 16.7 ms (1080P 120Hz), 8.4 ms (1080P 240Hz), 33.4 ms (1080P 60Hz), 33.4 ms (4K 60Hz)
• Resolution Support: VGA (640 x 480) to 4K UHD (3840 x 2160)
• Horizontal Frequency: 15K~135KHz

I/O Interface

• HDMI in: (x2), HDMI-1 (2.0b/HDCP2.2), HDMI-2 (2.0b/HDCP2.2)
• USB Type A: (x2), USB Type A-1 (2.0/Power Supply1.5A/Service), USB Type A-3 (2.0/Wireless Dongle)
• USB Type C: (x1), Display Port with PD out 5V/1A
• RS232 in (DB-9pin): (x1)

Audio

• Speaker: (x1), 10W
• HDMI Audio Return: eARC, 7.1 channel

Environment

• Operating Temperature: 0~40℃
• Power Supply: AC 100 to 240 V, 50/60 Hz
• Typical Power Consumption (110V): 212W
• Stand-by Power Consumption: <0.5W
• Acoustic Noise (Typ./Eco.)(dB): 32db/29db

Accessories

• Wireless USB dongle: EZC-5201BS 1080p, (Optional)

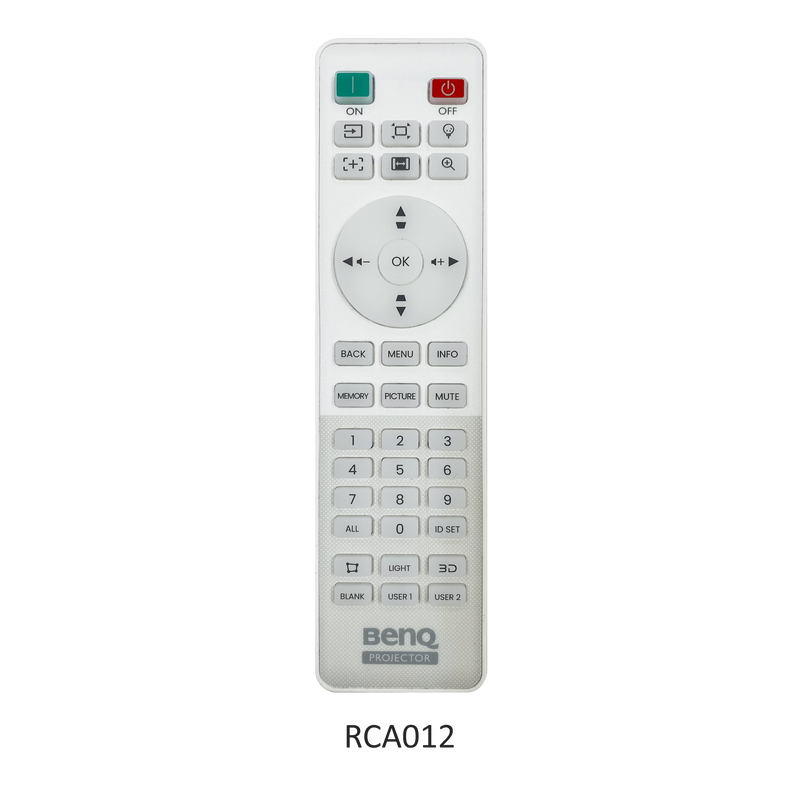

• Remote Control w/ Battery: RCA012
• Power Cord: x1 (1.8M)
• Quick Start Guide: (x1) 21L

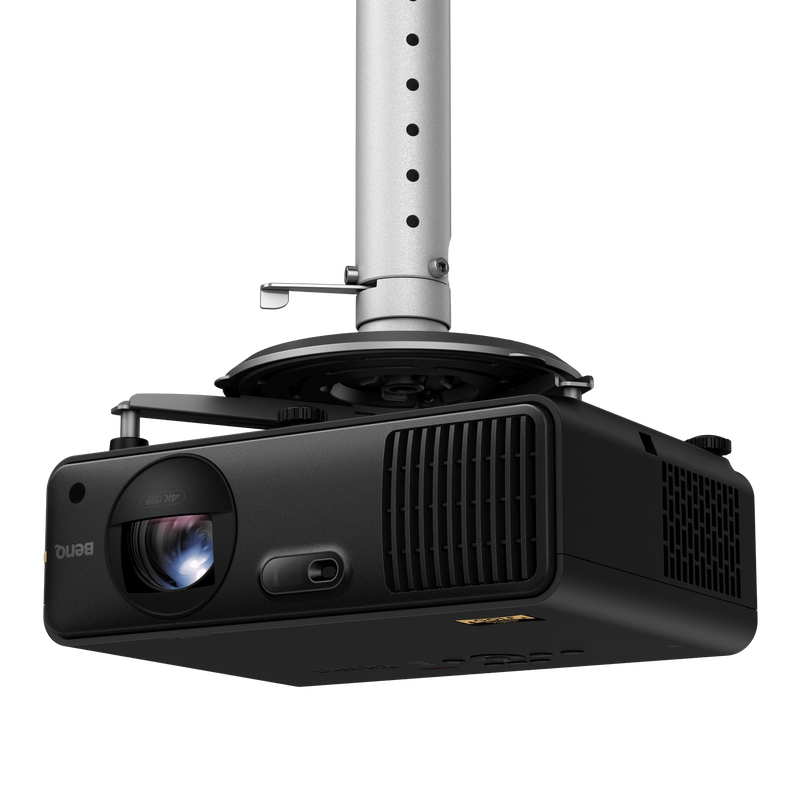

• Universal Ceiling Mount: (Optional)

Dimensions & Weight

• Dimensions (WxHXD) (inch): 11.94 x 4.43 x 9.23
• Net Weight (lb): 7.48 lb
